Grapevine Masonry designs and builds brick retaining walls in Grapevine, TX that control erosion and add curb appeal. We create garden walls, boundary walls, and tiered brick structures that support soil and frame your landscape. Our team focuses on proper drainage, footing, and layout so your brick retaining wall stays strong over time.
Grapevine Masonry provides professional brick retaining walls throughout Grapevine, TX, Texas and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call
(682) 688-8436 or request your free quote.

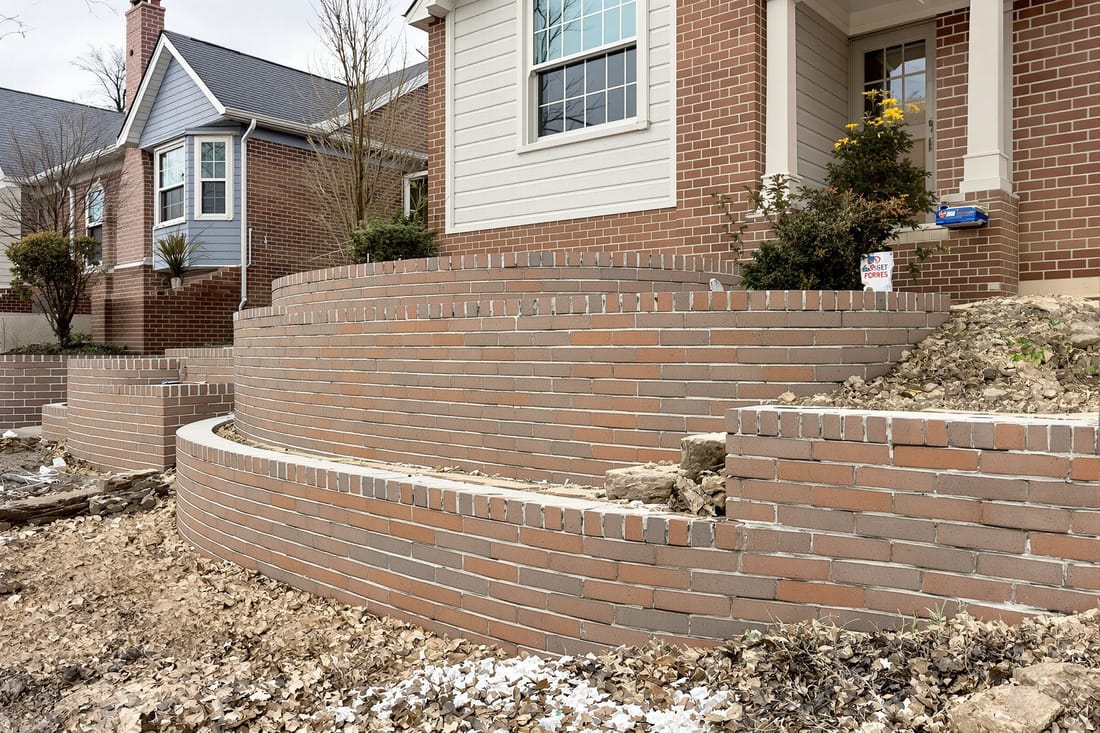

Brick Retaining Walls Built for Grapevine Homes and Yards
Brick retaining walls do more than hold back soil. In Grapevine they help manage sloped yards, protect foundations, and create usable patios and garden areas that stand up to North Texas weather. Grapevine Masonry focuses on brick retaining walls that are both structural and attractive so the wall looks like it belongs with your home instead of an afterthought.
When we meet a homeowner in Grapevine or nearby communities like Colleyville or Southlake, we start by walking the property with you. We look at how water moves across your yard during heavy rain, how close the wall will be to your home or pool, and what your HOA or neighborhood guidelines say about materials and height. This site-specific approach helps us recommend a brick retaining wall that actually solves drainage and erosion problems instead of shifting them somewhere else on your property.
Because we live and work here, we understand the local clay soils and how they expand and contract with moisture. This movement is one of the biggest threats to a retaining wall. Our designs, footing depth, and drainage plans all account for these conditions so you are not paying to rebuild the same wall a few years later.
How We Design a Brick Retaining Wall That Will Not Fail
A long-lasting brick retaining wall starts on paper. Grapevine Masonry begins with measurements of the slope, the height you need to retain, and the load above the wall such as a driveway, parking area, or pool deck. For taller or load-bearing walls we coordinate with a structural engineer to confirm rebar size, footing dimensions, and any step-backs or tiered sections required by code.
We help you choose between a solid brick veneer over a concrete block core or a structural brick system where appropriate. For most retaining walls in Grapevine, a CMU (concrete masonry unit) core with poured concrete and rebar provides the strength, and the brick provides the appearance that ties into your home. We can match existing brick as closely as possible using local yards in Grapevine and DFW, or select a contrasting brick if you want the wall to stand out as a garden feature.
We also plan for features that matter in everyday use, such as integrated steps up a slope, seating-height caps around a fire pit, or planters built into the wall. These additions have to be considered at the design stage so the wall can support the added weight and footing layout. By finalizing the use and look upfront, you avoid change orders later, which keeps both cost and construction time under control.
Step-by-Step Construction Process for Brick Retaining Walls
Once the design is approved, Grapevine Masonry schedules the build around weather and any HOA requirements. The first step is excavation. We dig down for the footing below the frost line used in this part of Texas and to reach undisturbed soil. The footing is then formed, reinforced with rebar, and poured with concrete wide enough to support the wall thickness and any needed setbacks.
After the footing cures, we build the structural core, typically using CMU blocks. We stack the blocks in running bond, install vertical and horizontal rebar per the engineered plan, then grout the cells to create a solid, reinforced wall. We incorporate weep holes or drain outlets as we go so water can exit through the face at controlled points instead of forcing its way through mortar joints.
At the same time, we install the drainage system behind the wall. This usually includes a perforated drain pipe at the base, wrapped in filter fabric, and surrounded by clean gravel. The backfill area directly behind the wall is layered with gravel to promote drainage, then compacted soil as we move further back. Only after the structural wall and drainage are complete do we begin laying the face brick, which allows us to focus on tight joints and clean lines without rushing the structural work.
Brick Choices, Layout Options, and Finishing Details
A big part of why homeowners in Grapevine choose brick retaining walls is appearance. Grapevine Masonry sources clay brick from regional manufacturers so colors hold up under strong Texas sun. We can often match the brick on your home or suggest a blend that complements your trim, stone, or roofing.
Layout patterns can be more flexible on retaining walls than on house facades since we control the dimensions. Running bond is the most common because it balances strength and cost. For visible garden walls and seating areas we can introduce soldier courses, rowlock caps, or decorative banding in a different color to break up long runs. On corner returns and stair sections, we pay close attention to how bond lines wrap so the wall looks intentional from every angle.
For the top of the wall we install a cap that seals out water and finishes the look. Options include brick caps laid on edge, cast stone, or concrete caps that can be stained or textured. Smooth caps add comfortable seating along patios, while slightly sloped caps help shed rainwater. We also consider how irrigation lines, landscape lighting, or fence posts will tie into the wall so those trades are coordinated and your new brick retaining wall is not drilled or cut unnecessarily after completion.
Common Problems With Retaining Walls in Grapevine and How We Prevent Them
Many of the brick retaining walls Grapevine Masonry is asked to replace failed for the same few reasons. Poor drainage is the most common. When water collects behind a wall without a path to escape, it adds tremendous pressure. We prevent this with properly placed drain pipe, gravel backfill, filter fabric to keep soil out of the gravel, and weep holes at the face where needed.
Another frequent issue is shallow or inconsistent footing depth. In areas of Grapevine with expansive clay, a footing that is too shallow or not on uniform undisturbed soil can settle unevenly, leading to cracks and leaning. We excavate until we reach firm bearing soil across the whole length of the wall, then keep our footing thickness and reinforcement consistent, even if that means taking extra time in one section of your yard.
Improper tie-ins are a third problem. When a retaining wall connects to a driveway, patio, or steps, those structures must be considered part of a single system. If they move at different rates, cracks appear at the joints. We plan expansion joints and reinforcement so your driveway edge or patio slab works with the wall instead of against it. By addressing these issues in the design and build stages, we help you avoid the slow lean and stair-step cracking that many older Grapevine walls show.
Permits, HOA Rules, and Local Requirements in Grapevine, TX
In Grapevine, whether a brick retaining wall needs a permit depends on its height and what it is supporting. As a general guideline, walls over a certain height or those supporting driveways or structures often require engineering and city review. Grapevine Masonry can help you determine when a permit is required and provide any drawings, specs, or engineer letters the city requests.
Many Grapevine neighborhoods, especially those around Grapevine Lake and in planned communities, have HOA rules that affect retaining walls. These can include limits on height visible from the street, requirements to match the brick on the home, or rules about terraced versus single tall walls. Before we finalize a design, we review your HOA documents with you and, if needed, provide sketches and material samples for your architectural control committee.
We also keep an eye on drainage requirements so your new wall does not create runoff issues for neighbors. Redirecting water across property lines can lead to disputes, so we design retaining walls and drainage paths that keep water on your property as much as possible and discharge it where it is allowed, such as existing swales or storm drains.
Costs, Timing, and What to Expect When You Hire Grapevine Masonry
The cost of a brick retaining wall in Grapevine depends on several specific factors: wall height and length, site access, soil conditions, drainage requirements, and brick selection. A short garden wall with easy access and standard brick costs far less per foot than a tall, engineered wall holding up a driveway on a tight lot. During our on-site visit, we walk you through each cost driver so you understand why one design might be more or less expensive than another.
We provide written estimates that separate excavation, structural work, brick facing, drainage, and any extras such as steps or caps. This transparency helps you compare options honestly rather than just looking at a single lump sum. On typical residential projects, construction takes anywhere from a few days to a couple of weeks, depending on weather and complexity. We schedule noisy or dusty work like cutting and excavation during reasonable daytime hours and keep the site as tidy as possible each day.
When you work with Grapevine Masonry, you deal with a local crew that is used to working in established Grapevine neighborhoods and around existing landscaping. We protect nearby trees, coordinate with your sprinkler contractor if lines need to be moved, and clean up concrete washout and debris at the end of the job. The goal is that when we finish, you are left with a brick retaining wall that looks like it has always belonged on your property and performs well through many North Texas storm seasons.
